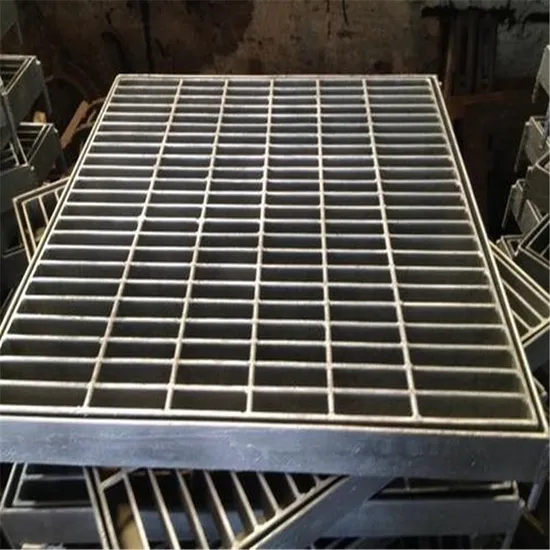

stair treads steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer.
requirements finished products. It's usually used in industrial construction projects. We have 4 types for choose, there is welded
fixing stair treads, clip fixing galvanized stair treads, checker plate stair treads.
We manufacture different styles of stair ladders that used in family,industry and construction.
Material: mill steel black and hot dip Galvanizing / and stainless grating
Usage: ladder, flooring walkway, platform ,steel structures, stair tread, well cover, trench cover, sump cover,compound gratings, storage shelves,fences and handrail so on for construction project, oil project, seaport, power plant, water plant, defense project, chemical factory and so on.
1)There are four kinds of stair treads T1,T2,T3,T4.
T1 Welded fixing and Without nosing
T2 Bolted fixing and without nosing,easy to installation and teardown.

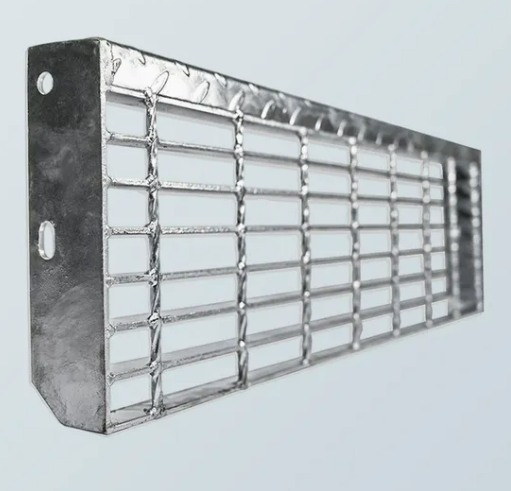

T3 Welded fixing and with checkered plate nosing, can be skid.
T4 Bolted fxing and with checkered plate nosing, easy be installation,
teardown and can be skid.
2) Material: Mild Steel (Low Carbon Steel) or Stainless Steel
3) Surface Treatment:
Untreated, Painting ,Powder coated or Hot dip Galvanizing
4) Steel grating standards:
A) China: YB/T4001-1998
B) USA: ANSI/NAAMM (MBG531-88)
C) UK: BS4592-1987
D) Australia: AS1657-1988
E) Japan: JJS
| Steel grating specification Bearing bar size | 25*3 | 25*5 | 32*5 |
| Bearing bar pitch30mm | 550 | 900 | 1300 |
| Bearing bar pitch 40mm | 450 | 750 | 1200 |
